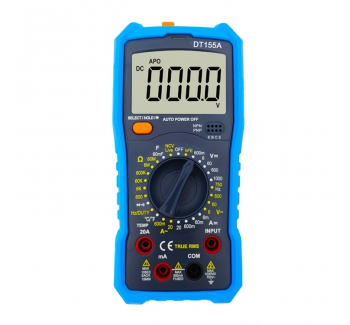

Characteristic ntelligent Digital Multimeter with Live Wire Identification and Large Capacitance Measurement | |
Technology features DC Voltage: 600m-6-60-600-1000V ±0.8% AC Voltage: 6-60-600-750V ±1.2% DC Current: 6m-60m-600m-20A ±1.0% AC Current: 600m-20A ±1.8% Resistance: 600-6k-60k-600k-6M-60M ±1.2% Capacitance: 6n-60mF ±8.0% Frequency: 10-10MHz ±1.5% Duty Cycle: 10%-95% ±2.0% Temperature Measurement: -40 -1000℃, -40-1832℉ ±2.5% | |
Description LCD Display Size: 63x42.5mm Maximum LCD Display: 5999 Low Voltage Symbol Display: Yes Automatic Range: Automatic range in capacitance mode Overload Protection: Yes Diode: Yes, displays approximate voltage drop Continuity Measurement and Buzzer Function: Yes Transistor Test: Yes Auto power-off: Yes Data Hold: Yes Backlight Display: Yes Temperature Test: Yes NCV Test: Yes Live and Neutral Wire Identification: Yes Power Frequency Test: Yes (switchable in AC 750V range) Wake-up Mode: Yes (only wake-up by rotary switch) |
DC Voltage: 600m-6-60-600-1000V ±0.8%
AC Voltage: 6-60-600-750V ±1.2%
DC Current: 6m-60m-600m-20A ±1.0%
AC Current: 600m-20A ±1.8%
Resistance: 600-6k-60k-600k-6M-60M ±1.2%
Capacitance: 6n-60mF ±8.0%
Frequency: 10-10MHz ±1.5%
Duty Cycle: 10%-95% ±2.0%
Temperature Measurement: -40 -1000℃, -40-1832℉ ±2.5%
Power Supply: 2 x 1.5V AAA batteries
Product Dimensions: 186x87x50mm
Product Weight: Approximately 310g (with sheath and batteries)
Standard Configuration: meter (with batteries inside), holster, test leads, temperature probe, operation manual.
