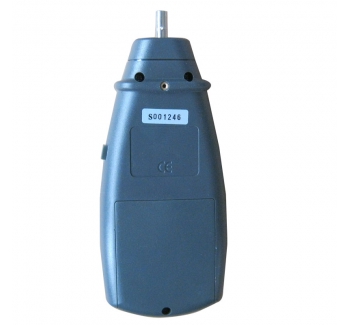

DT2235A Digital contact tachometer
DT2235A Digital contact tachometer
DT2235A Digital contact tachometer

DT2235A Digital contact tachometer

Wide measuring range and high resolution
Digital display gives exact RPM（surface speed、line length） with no guessing or errors
The last value/max, value/rain, value will be automatically stored in memory and can be displayed by turn anytime
The use of durable, long-lasting components, including a strong, light weight ABS-plastic housing assures maintenance free performance for many years. The housing has been carefully shaped to fit comfortably in either hand

Characteristic

Wide measuring range & high resolution
Digital display gives exact RPM（surface speed、line length） with no guessing or errors
The last value/max, value/rain, value will be automatically stored in memory and can be displayed by turn anytime
The use of durable, long-lasting components, including a strong, light weight ABS-plastic housing assures maintenance free performance for many years. The housing has been carefully shaped to fit comfortably in either hand.

Technology features

Display: 5 digits, 18mm (0.6-inch LCD screen)
Test Range: 0.5 to 19,999 RPM (r/min)
Resolution: 0.1 RPM (0.5 to 999.9 RPM)
                   1 RPM (over 1,000 RPM)
Contact tach: 0.5 to 19999RPM
Resolution: 0.1 m/min (0.5 to 999.9RPM)、1 m/min（over 1000RPM）
Surface speed: 0.05 to 19999m/min
Resolution: 0.01 m/min (0.05 to 99.99RPM)、0.1 m/min（over 100RPM）
Accuracy: (0.05%+1 digit)
Sampling Time: 0.8 sec.(over 60 RPM)
Test Range Select: Automatic
Memory: Last value, Max. Value,Min. Value

Description

Time Base：6MHz Quartz crystal
Sampling time：0.5sec（over 120 RPM）
Range select：auto range
Circuit：Exclusive one-chip of microcomputer LSI circuit.
Battery： 3 * 1.5V AA
Power Consumption：Approx. 35mA (LED)
Approx. 30mA (Laser)
Operation Temp：0 to 50°C(32 to 122°F)
Size：184 x 76 x 30 mm
Weight：204g (including battery)

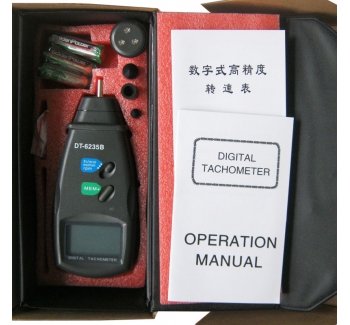

Accessories：4 * 1.5V AA Battery、 3 x Reflecting tape marks、1 x User manual


Display: 5 digits, 18mm (0.6-inch LCD screen)
Test Range: 0.5 to 19,999 RPM (r/min)
Resolution: 0.1 RPM (0.5 to 999.9 RPM)
                   1 RPM (over 1,000 RPM)
Contact tach: 0.5 to 19999RPM
Resolution: 0.1 m/min (0.5 to 999.9RPM)、1 m/min（over 1000RPM）
Surface speed: 0.05 to 19999m/min
Resolution: 0.01 m/min (0.05 to 99.99RPM)、0.1 m/min（over 100RPM）
Accuracy: (0.05%+1 digit)
Sampling Time: 0.8 sec.(over 60 RPM)
Test Range Select: Automatic
Memory: Last value, Max. Value,Min. Value

Time Base：6MHz Quartz crystal
Sampling time：0.5sec（over 120 RPM）
Range select：auto range
Circuit：Exclusive one-chip of microcomputer LSI circuit.
Battery： 3 * 1.5V AA
Power Consumption：Approx. 35mA (LED)
Approx. 30mA (Laser)
Operation Temp：0 to 50°C(32 to 122°F)
Size：184 x 76 x 30 mm
Weight：204g (including battery)
Accessories：4 * 1.5V AA Battery、 3 x Reflecting tape marks、1 x User manual

Packing details：gift box

Carton：53 x 42 x 41.5 CM

Packing quantity ：30 pcs/ctn

G.W.:16 kgs N.W.：15 kgs
